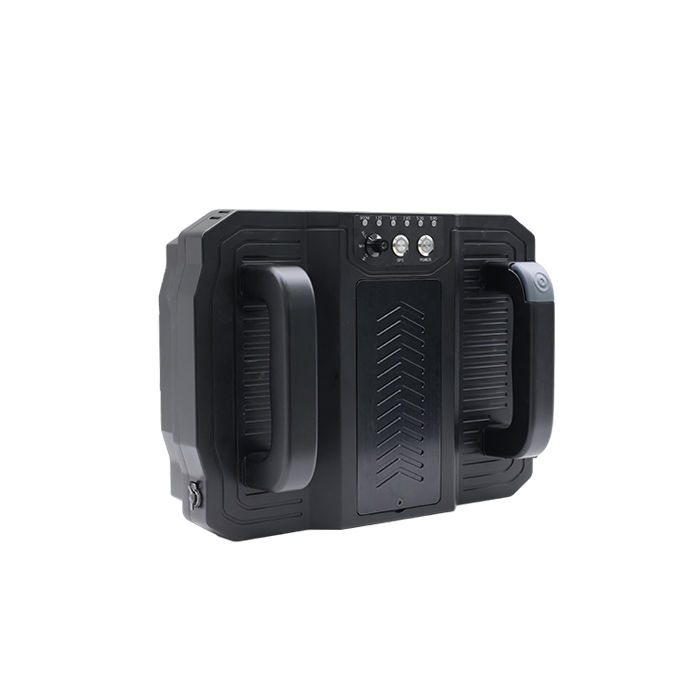

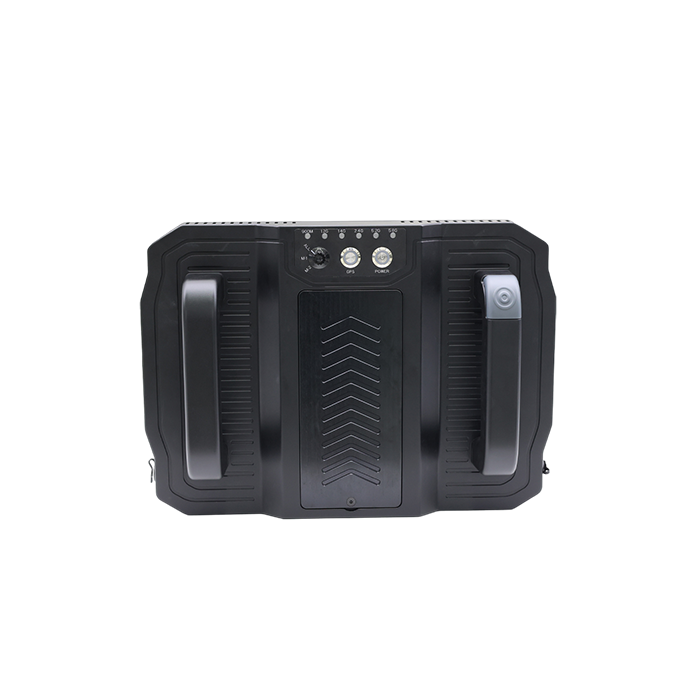

AT-619B Portable FPV Counter Shield

끅0755-23089919
낂melissayang@skytens.com
Based on SDR interference technology. The portable anti FPV shield supports different frequency band configurations and can effectively block drone signals such as data/image transmission, remote control, navigation, etc., especially for various FPV drones with good countermeasures.

Category: Portable C-UAV Equipment
Keywords: signal, drone interference module, fixed drone detection equipment

Function

effective interference FPV

By using digital modulation interference sources, it can effectively block the remote control/image transmission signal of FPV drones

Portable and Concealed

Small size, light weight, flexible and portable; shield-shaped design, high concealment, not easy to cause panic when used

flexible interference options

Two models to choose from (only for anti-FPV/anti-drone and FPV), exactly matching mission requirements

Continued Effectiveness

is based on SDR architecture and supports algorithm iteration to cope with future changes in drone technology



Specifications



Model

AT-619A

AT-619B

interference mechanism

SDR technology

interference band fluency

800MHz~900MHz/2.4GHz/5.3GHz~5.9GHz

800MHz~900MHz /1.2GHz 1.4GHz/1.5GHz/2.4GHz/5.2GHz/5.8GHz

direction of defense

direction interference

Interference Distance

FPV UAV:>1km (interference/communication ratio = 1:1)

FPV UAV:>lkm (interference/communication ratio = 1:1) Traditional UAV:>1km (interference/communication ratio = 2:1)

Total Transmission Power

<90W

<130W

Dimensions

440mm*250mm*l 50mm

Weight

<4.5kg(including battery host)

< 5.5kg (including battery host)

power S

lithium battery pack; support battery pack replacement, whole machine charging

power consumption

<250W (full power transmission)

<15W (standby mode)

<350W (full power transmission)

<35W (standby mode)

protection level

IP54

working temperature

-30C-+ 45C

Working humidity

not more than 93%, none

condensate

storage temperature

-40°C- +70°C



Special announcement: Due to the transition period between product update and online display, the graphics and text parameters on the page may differ from the actual product. Graphic and textual content is not the basis for actual delivery. Specific products and technical parameters to the actual product configuration shall prevail. Interested buyers, please contact Skytens sales staff to confirm. Skytens reserve the right to change the image parameters and provide the final explanation.
