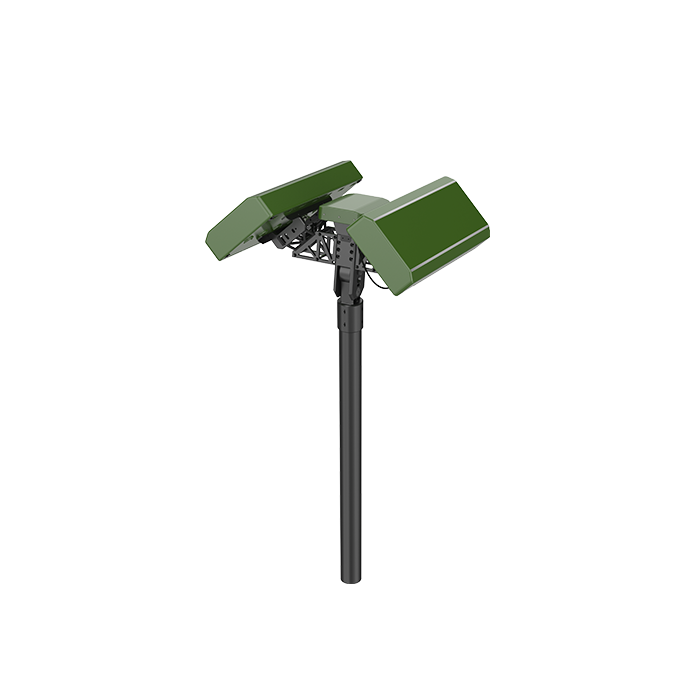

AT-610 EWALL Fixed Electronic Shielding Wall

끅0755-23089919
낂melissayang@skytens.com
EWALL， Fixed anti drone electronic wall, with shielding function, can build a drone protection "wall" for the target area through the networking of multiple devices. The SDR technology and high gain antenna carried by EWALL can prevent drones from crossing the target area, achieving a blocking effect.

Category: Fixed anti drone equipment
Keywords: Fixed anti drone electronic wall with shielding function

Function

Daily communication uninterrupted

a single device to achieve 180 ° elevation defense, multiple devices can form an electronic interference wall that does not affect the normal communication around

is valid for all drones

Using SDR technology, it has a good interference effect on various types of drones, especially suitable for FPV drone clusters

Flexible Network Deployment

can be deployed with multiple devices in the network for unified management of regions

rich adaptation scene

integrated standardized unit design, adjustable antenna beam to meet different needs

high reliability

IP66 protection level, able to work in a variety of complex environments



Specifications



interference method

radio interference

interference mechanism

Software Defined Radio (SDR)

Interference frequency range

80MHz ~ 900MHz/1.2GHz/1.4GHz/1.5GHz/2.4GHz/5.2GHz/5.8GHz

direction of defense

Directional interference (towards the sky)

Defense Range

500 m width (highest point) * 500 m height * 50 m thickness

response time

<5S

transmission power adjustment

support

GPS positioning

external positioning antenna to support Beidou, GPS, GLONASS and Galileo

Dimensions

Single antenna unit: 1030*380*146mm; control unit: 355*236*88mm (not including bracket)

Weight

<45kg (without bracket and cable)

Power

AC220V

protection level

IP66

working temperature

-30°C ~ 55°C

storage temperature

-40°C ~ 70°C



Special announcement: Due to the transition period between product update and online display, the graphics and text parameters on the page may differ from the actual product. Graphic and textual content is not the basis for actual delivery. Specific products and technical parameters to the actual product configuration shall prevail. Interested buyers, please contact Skytens sales staff to confirm. Skytens reserve the right to change the image parameters and provide the final explanation.
